Sqirl Canopy

Los Angeles, CA, 2012

Sqirl-Print18-2048x1550

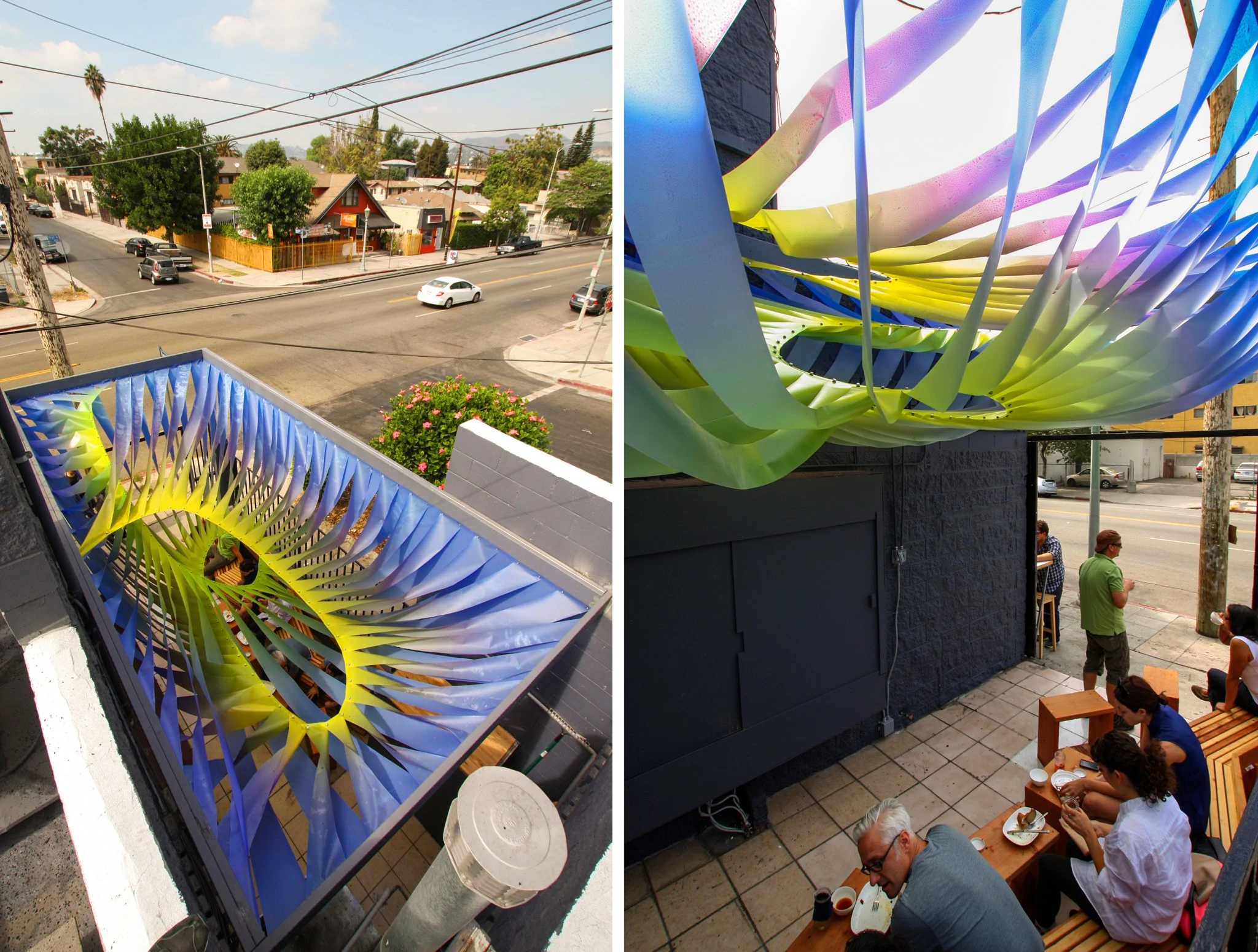

A temporary canopy for Sqirl, a pop-up cafe and bakery in Los Angeles, this draped structure is the product of our research into interdependent tensile systems.

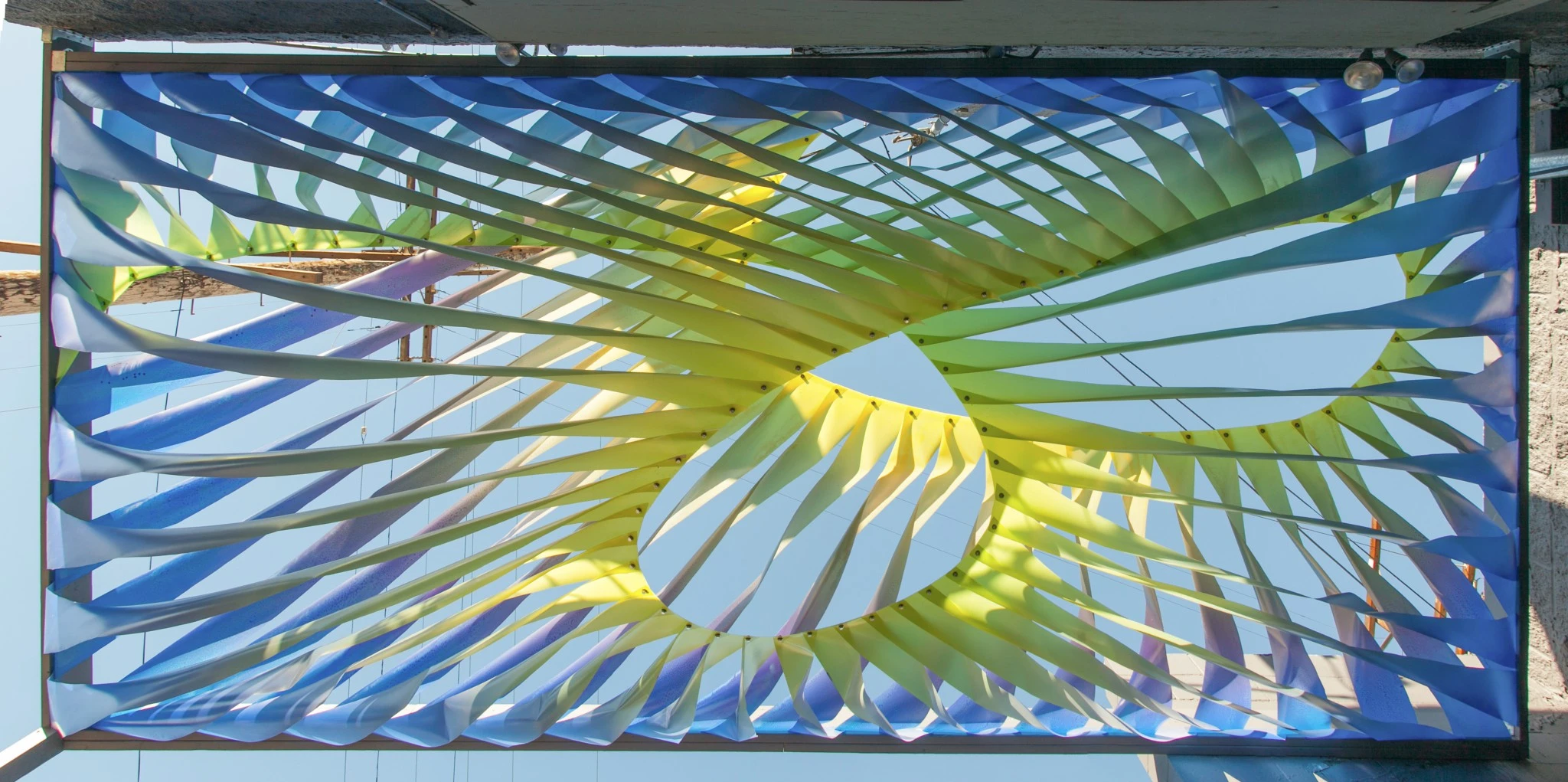

Sqirl-Print19-2048x1021

Web Processing-2048x1144

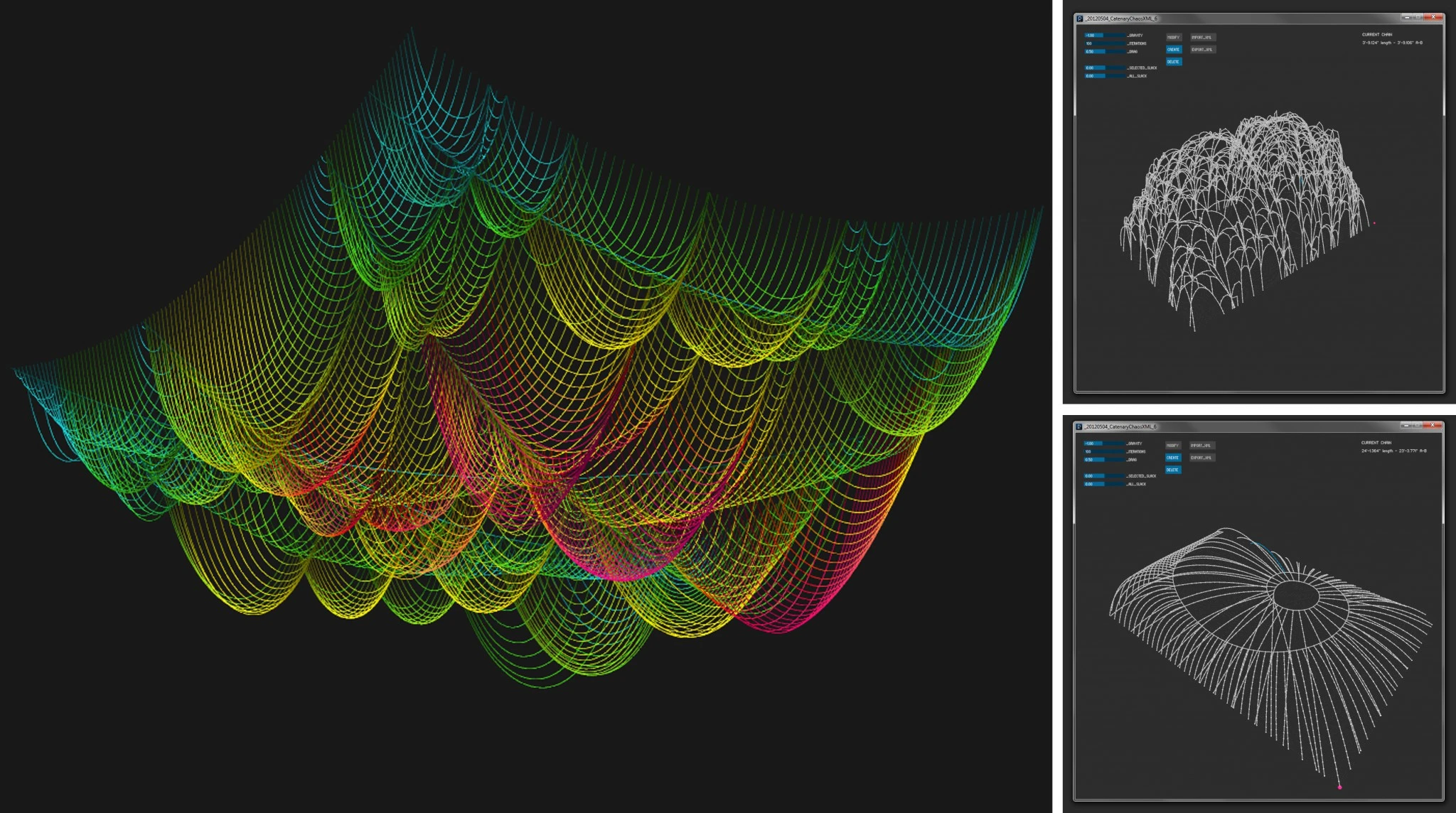

Unlike a series of isolated catenary curves, the strips are hung from only their outer edge. Each one is attached to its neighbors at its inner end, forming a contingent spiral based on the collective lengths and weight of all the strips.

Sqirl-process-composite-2048x1064

The dimensions of each of the 98 strips were adjusted using a digital physics engine to produce a layered, twisting set of implied surfaces that both shelter a small courtyard and act as a dynamic beacon for the pop-up cafe.

Sqirl-Axon-med-2048x1782

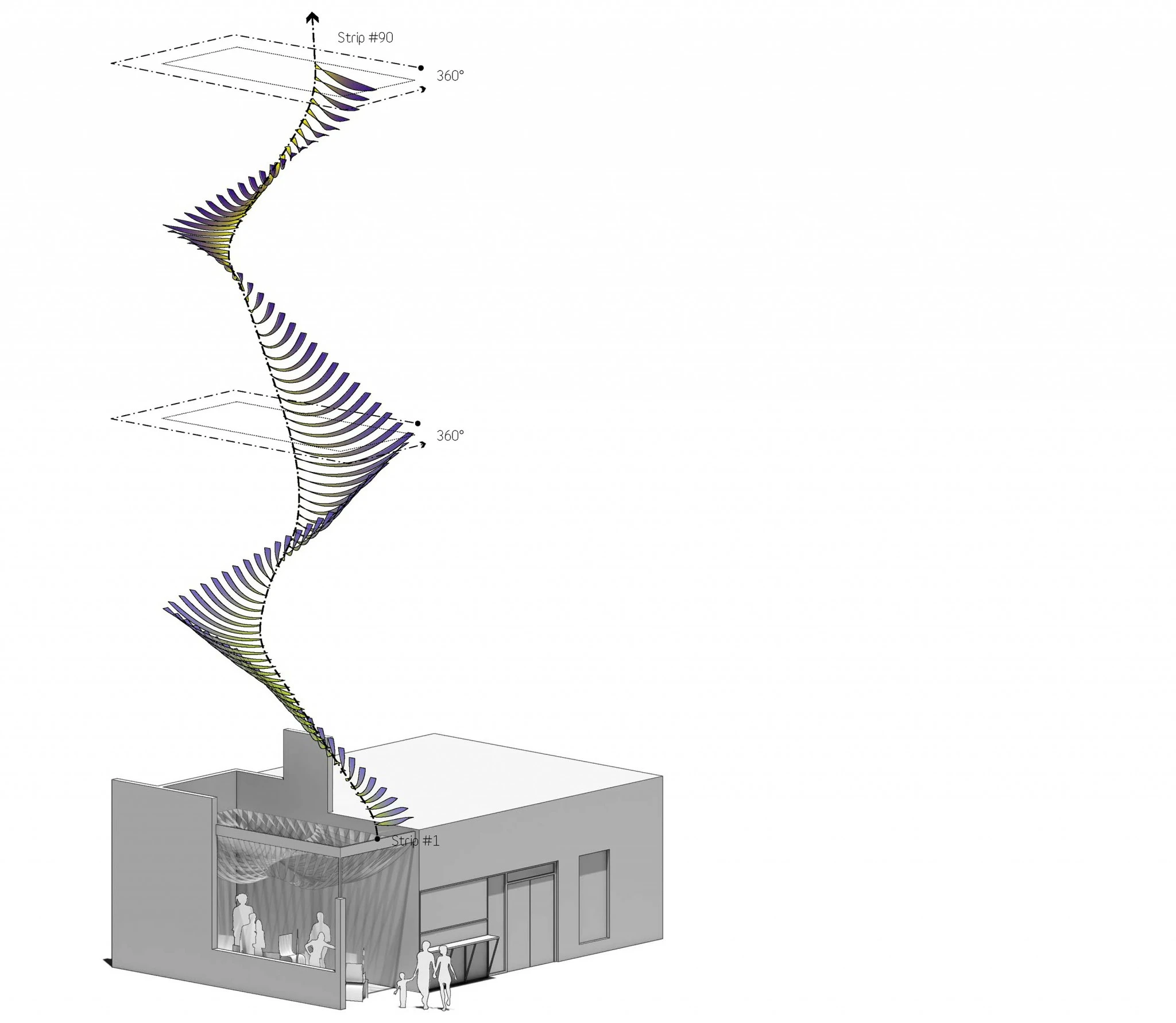

Canopy Assembly

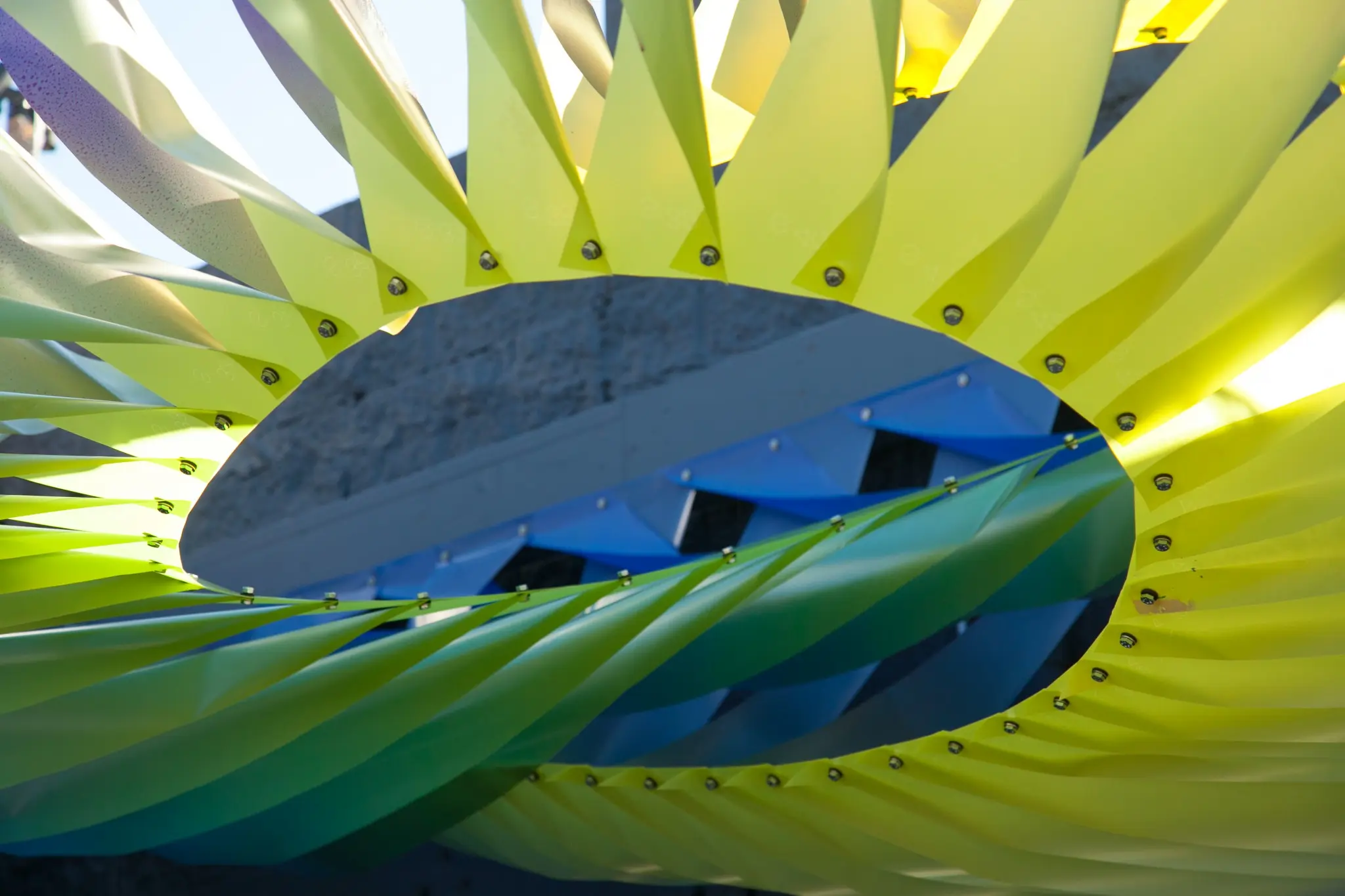

Sqirl-Print15-2048x1365

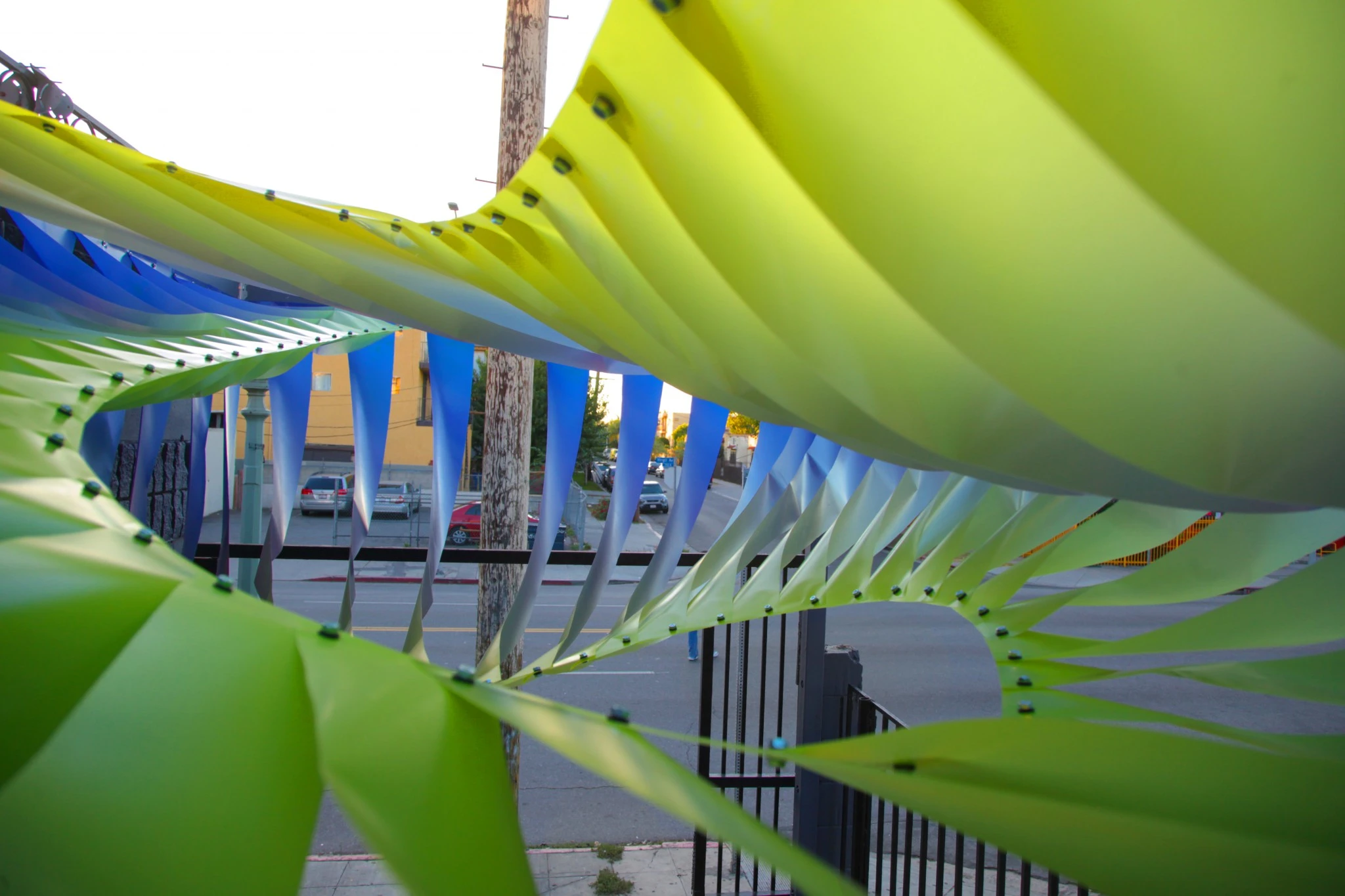

Sqirl-Print13-2048x1365

Sqirl-Plan-2048x1194

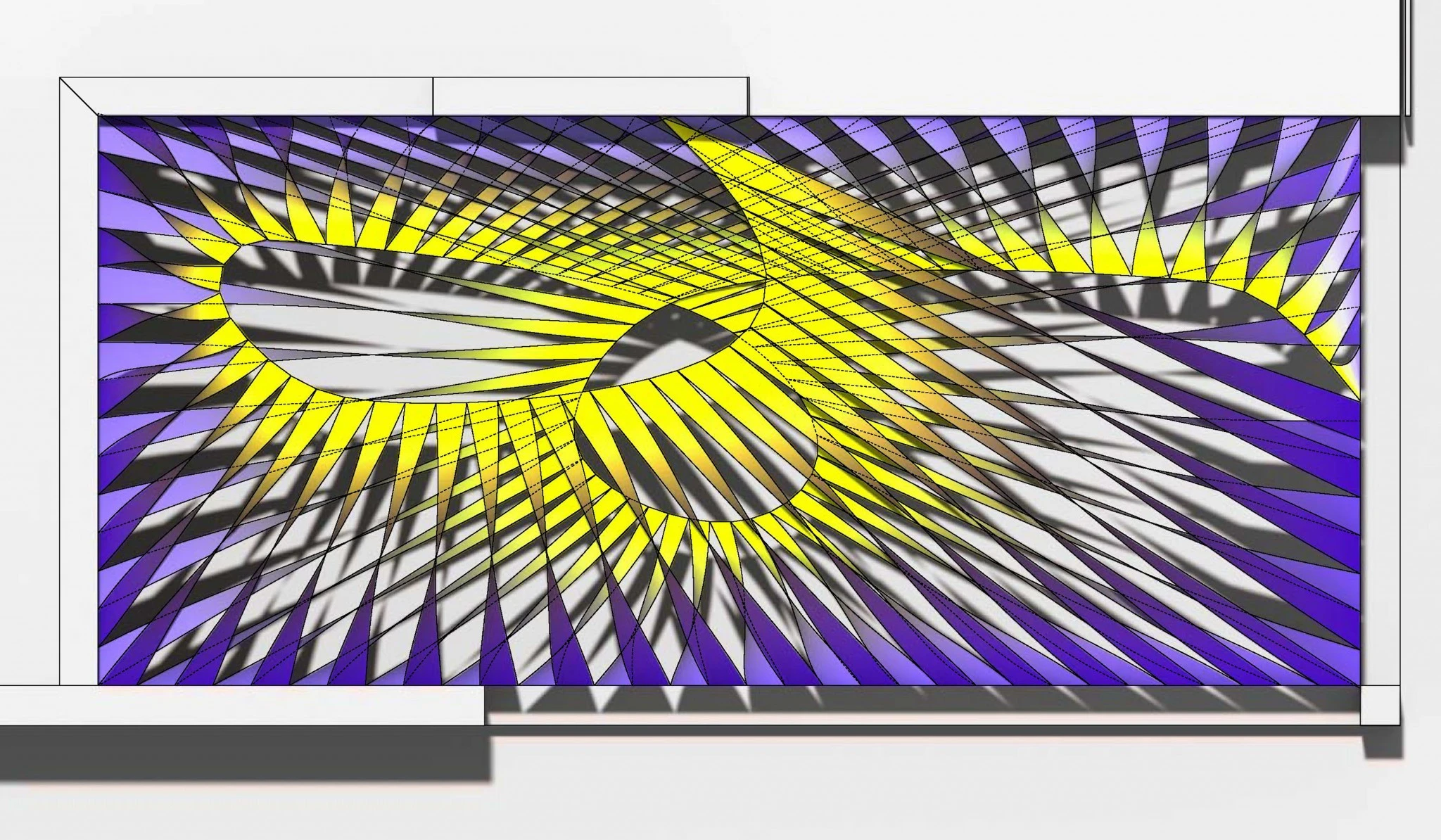

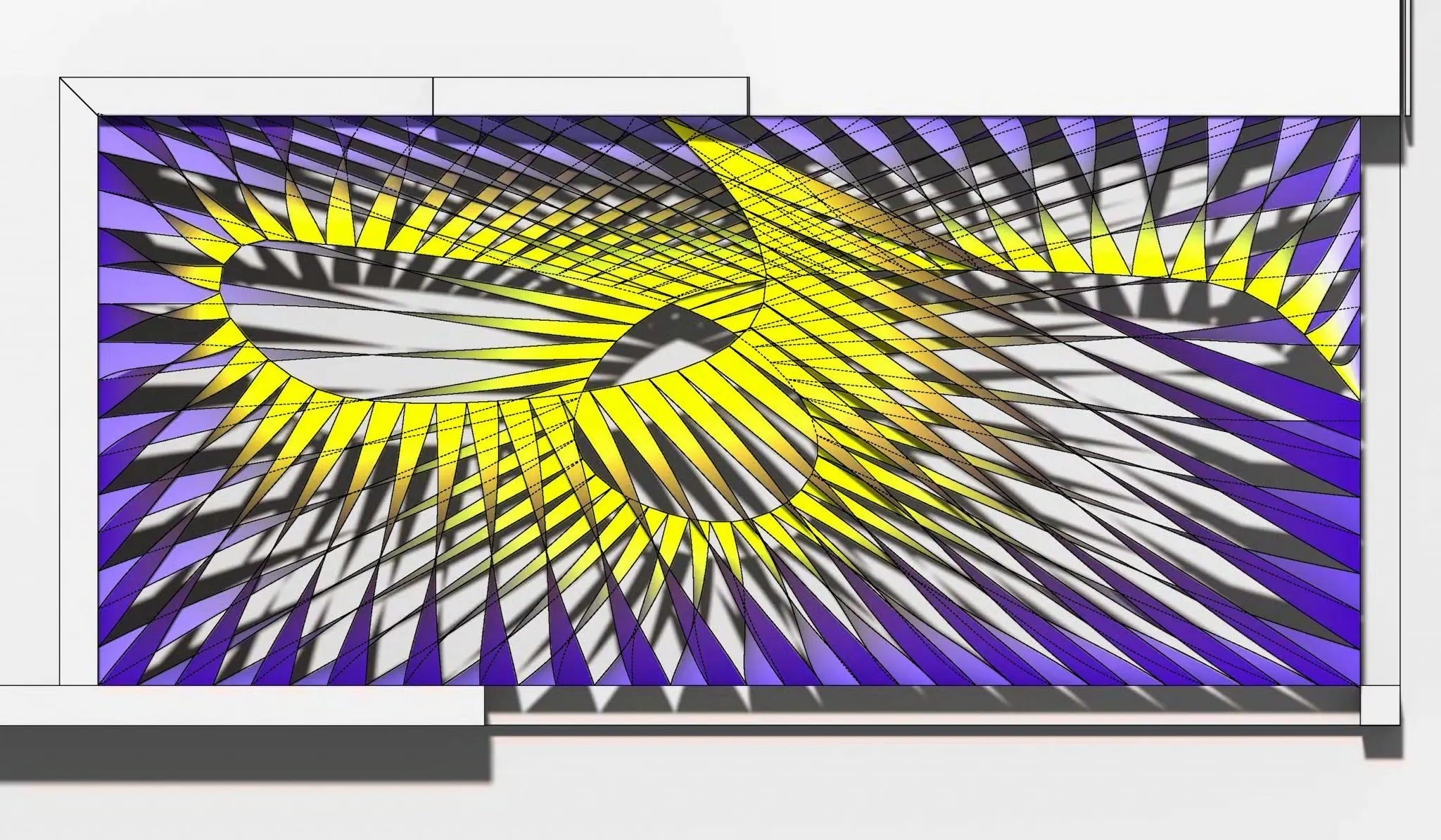

Plan

Project Team: David Freeland, Brennan Buck In collaboration with Christopher Connock
