Catenary Whorl

Los Angeles, CA, 2012

Drawings1-2048x1069

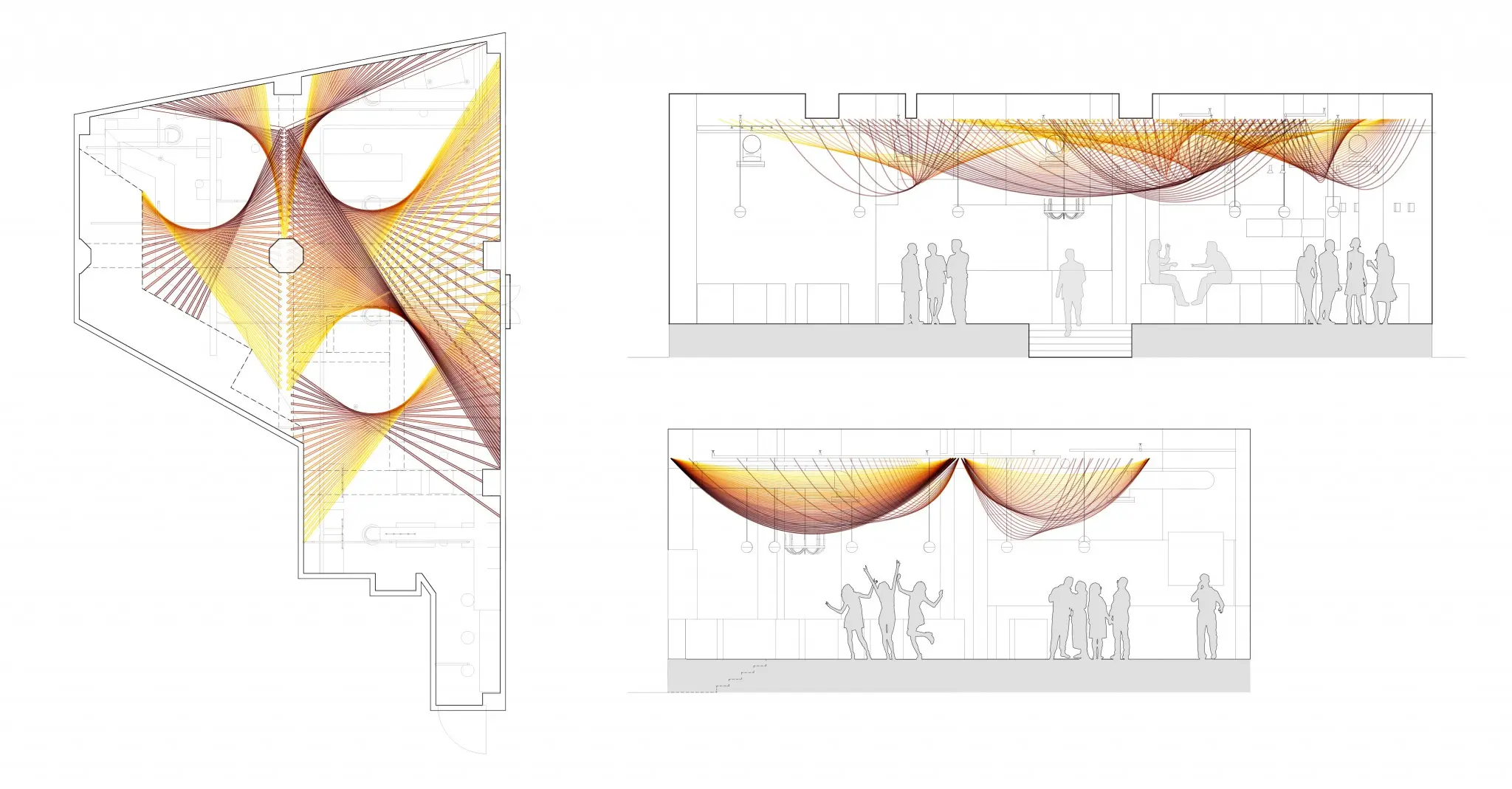

Plan & Sections

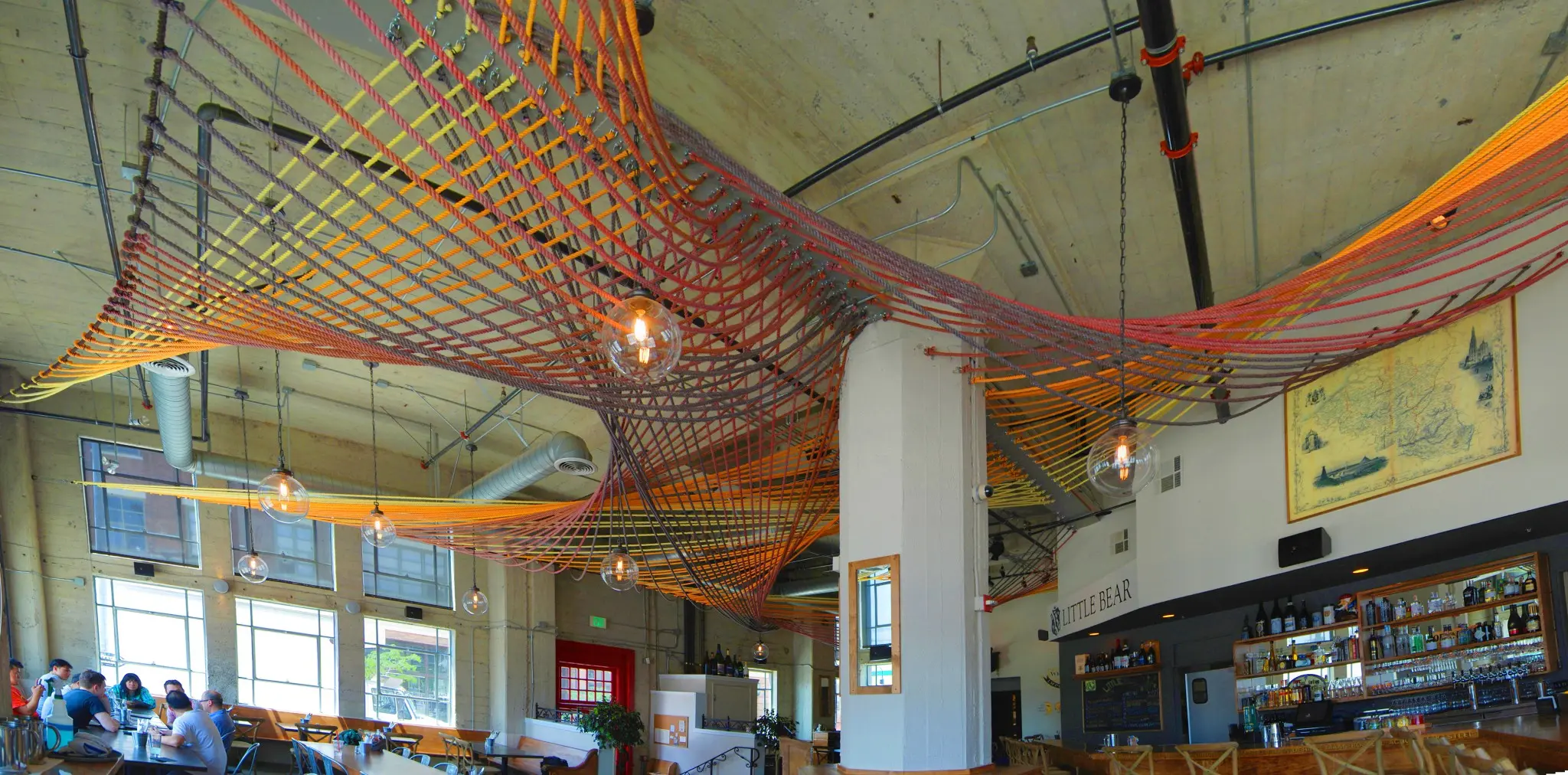

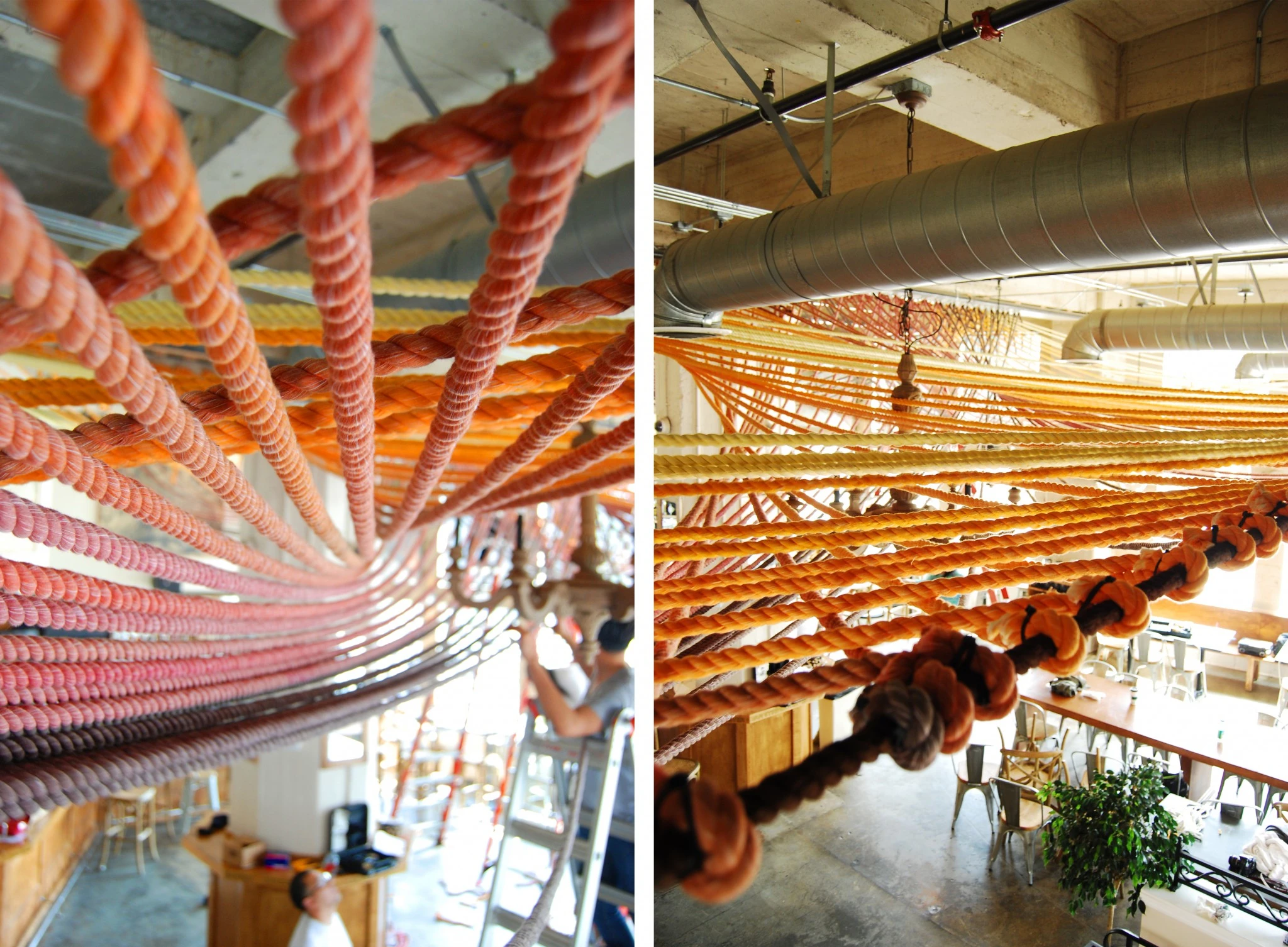

Catenary Whorl is a undulating canopy composed of 5,000 feet of soft, thick rope, which hangs from the ceiling of the restaurant Little Bear in downtown Los Angeles. Conceived as part of David Freeland’s graduate advanced visualization seminar at Woodbury University, the canopy was intended to diffuse and absorb sound while creating a new, unique atmosphere for the restaurant. Because the rope is hung more densely in some areas than others, the undulating surface subdivides the restaurant into smaller volumes, reducing reverberation time and creating distinct spatial qualities for bar, lounge, and dining areas.

Diagrams-2048x1357

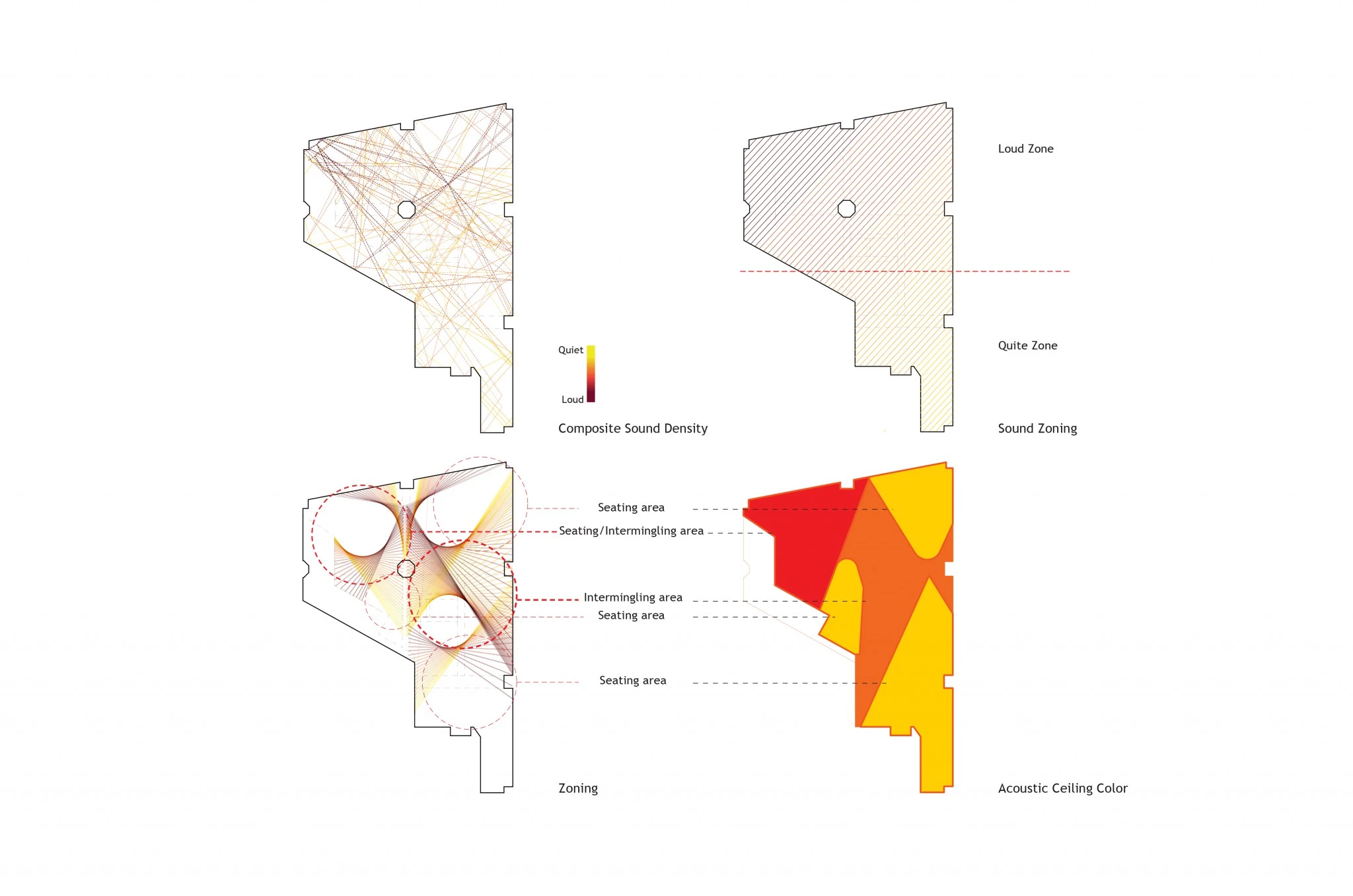

Acoustic & Spatial Zoning

Using ray tracing the space was studied to understand the density of the ambient sound field created by myriad reflections from the concrete walls, floor, and ceiling. Experimenting with the acoustic performance of 3/4″ cotton fiber rope, the canopy develops areas of density for sound absorption while remaining alternately porous acoustically and visually to maintain the raw qualities of the existing space.

Process-2048x1375

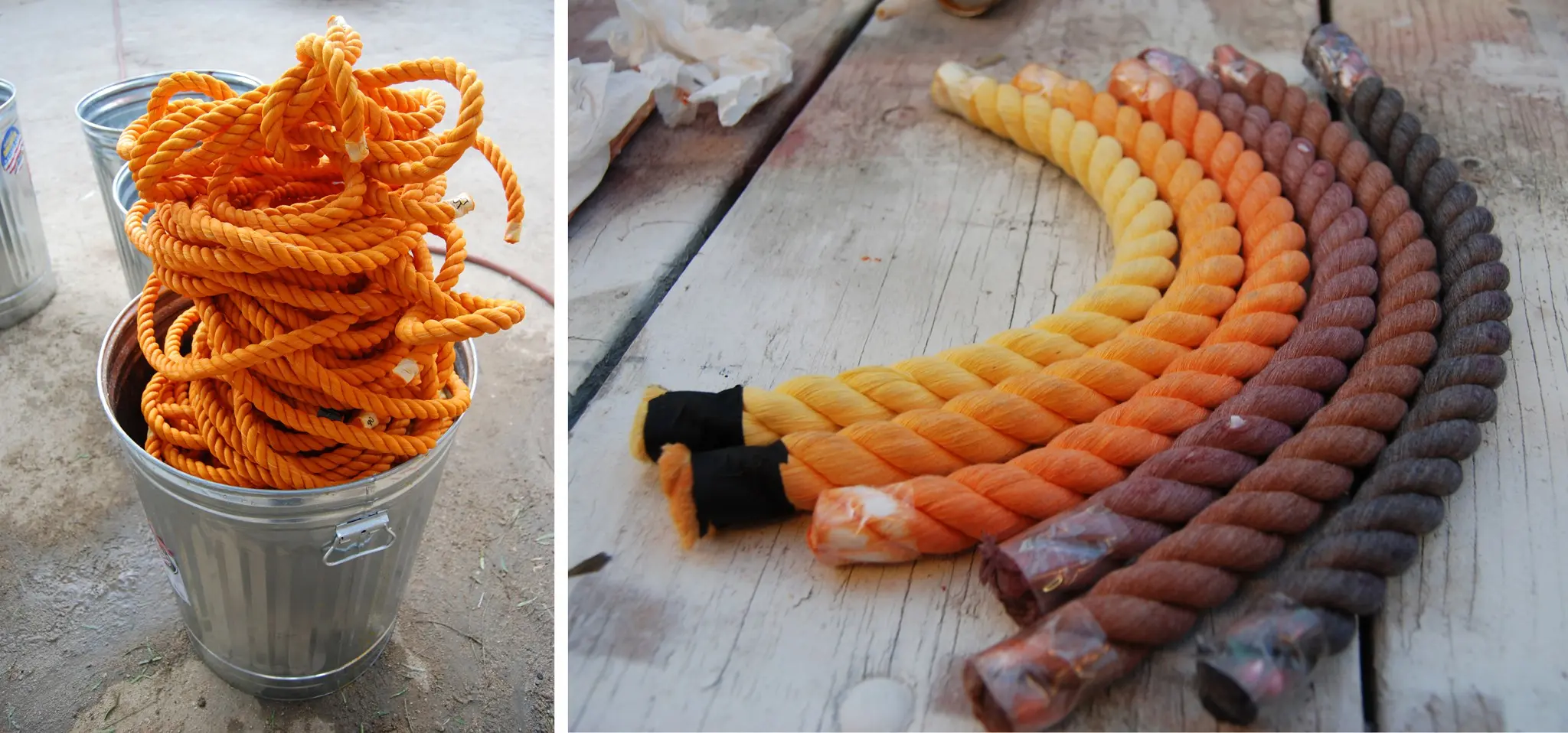

The rope is hand-dyed and the hues correspond with regions of color intensity identifying areas of acoustic absorption.

Process3sm-2048x958

comp-2048x1506

Pan1a coloredit-2048x1012

Acoustic Consultant: Nick Antonio, ARUP Los Angeles

Catenary Whorl was created by Woodbury School of Architecture graduate students in the visualization seminar Evolving Media taught by David Freeland. Zachary Schoch, teaching assistant; Ana Del Longo-Silberstein, Henry Cheung, Israel Castillo, Kemi Esho, Michael Kuroda, Pamas Moleeratanond, Roosevelt Golino, Sunny Lam

Additional assistance: Juan Lau, Teagan Castellon, Rana Ahmadi, Mark Montiel, Paul Castellanos, Duc Le, Brian Diaz, Joseph Veliz, Eric Arm, Manuel Alcala
