New Museum Tents

, 2013

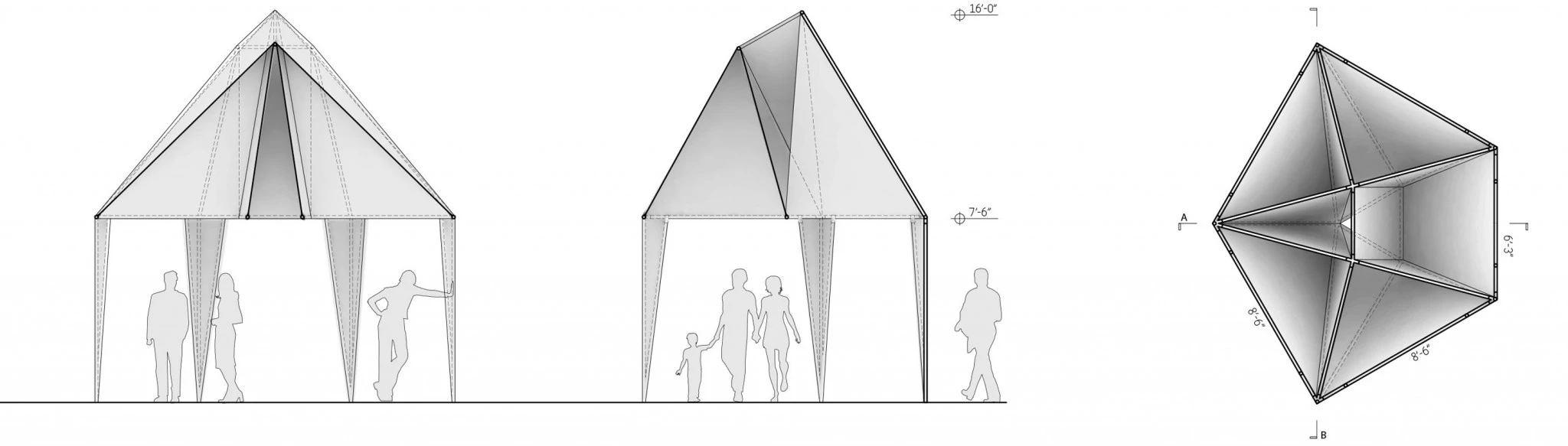

Plan-Section-resize-2048x583

Our proposed festival tents for the New Museum’s IDEAS CITY festival are both maximally adaptable and constantly different. While they are formally identical, each tent encloses a unique inner world of vibrant color and light. Unlike the claustrophobic enclosures of most street tents, deep ceilings shelter an array of urban activities while evoking nonurban ceilings such as forest canopies and night skies.

Layouts-resize-2048x1339

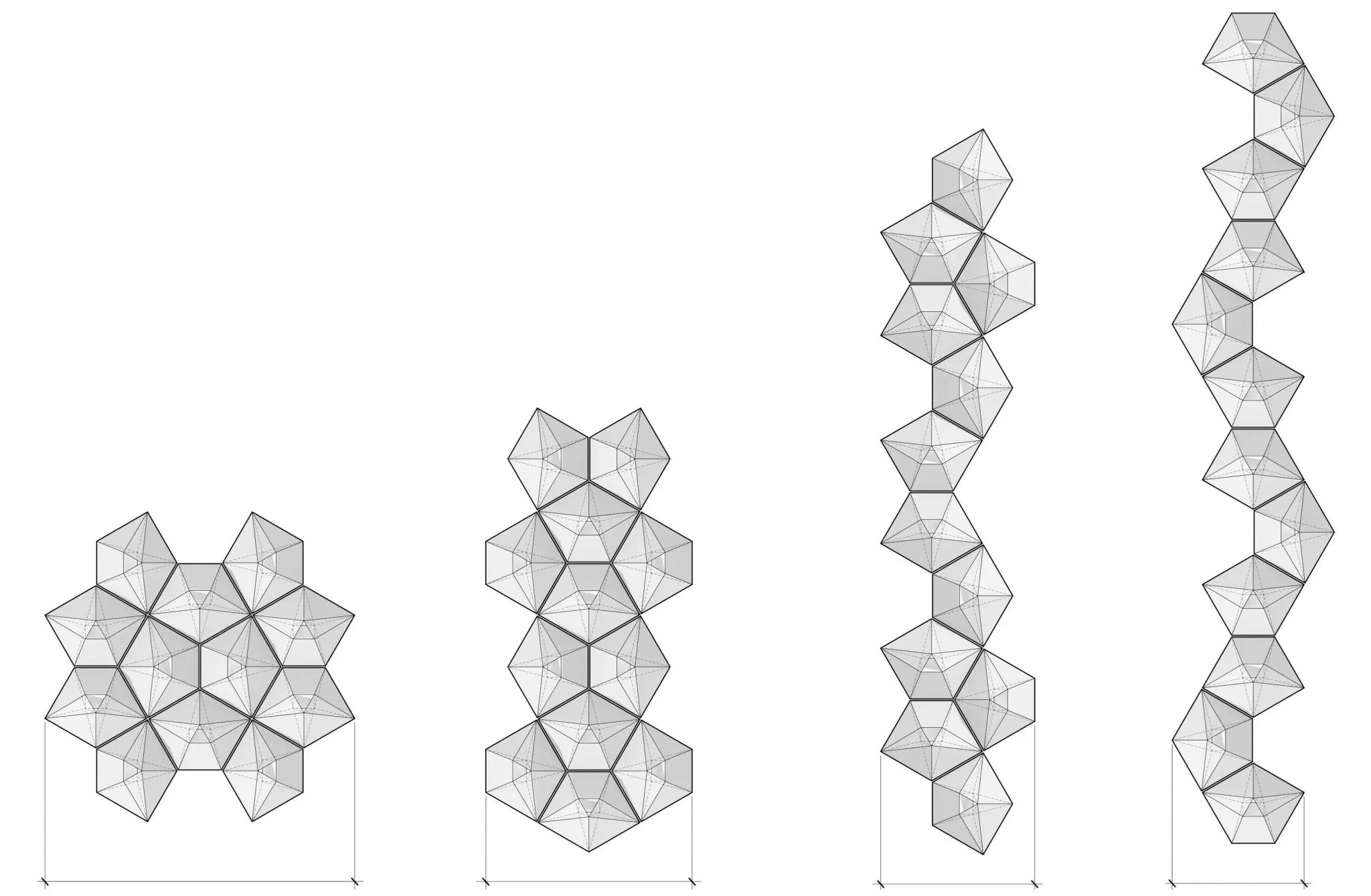

The 5-sided peaks are ideal for reconfiguring as a single canopy, a long chain or smaller clusters, never marching in monotonous repetition but producing a more lyrical rhythm of tall and low spaces, spinning this way and that.

NewMuseumTents-Print1-comp-2048x1154

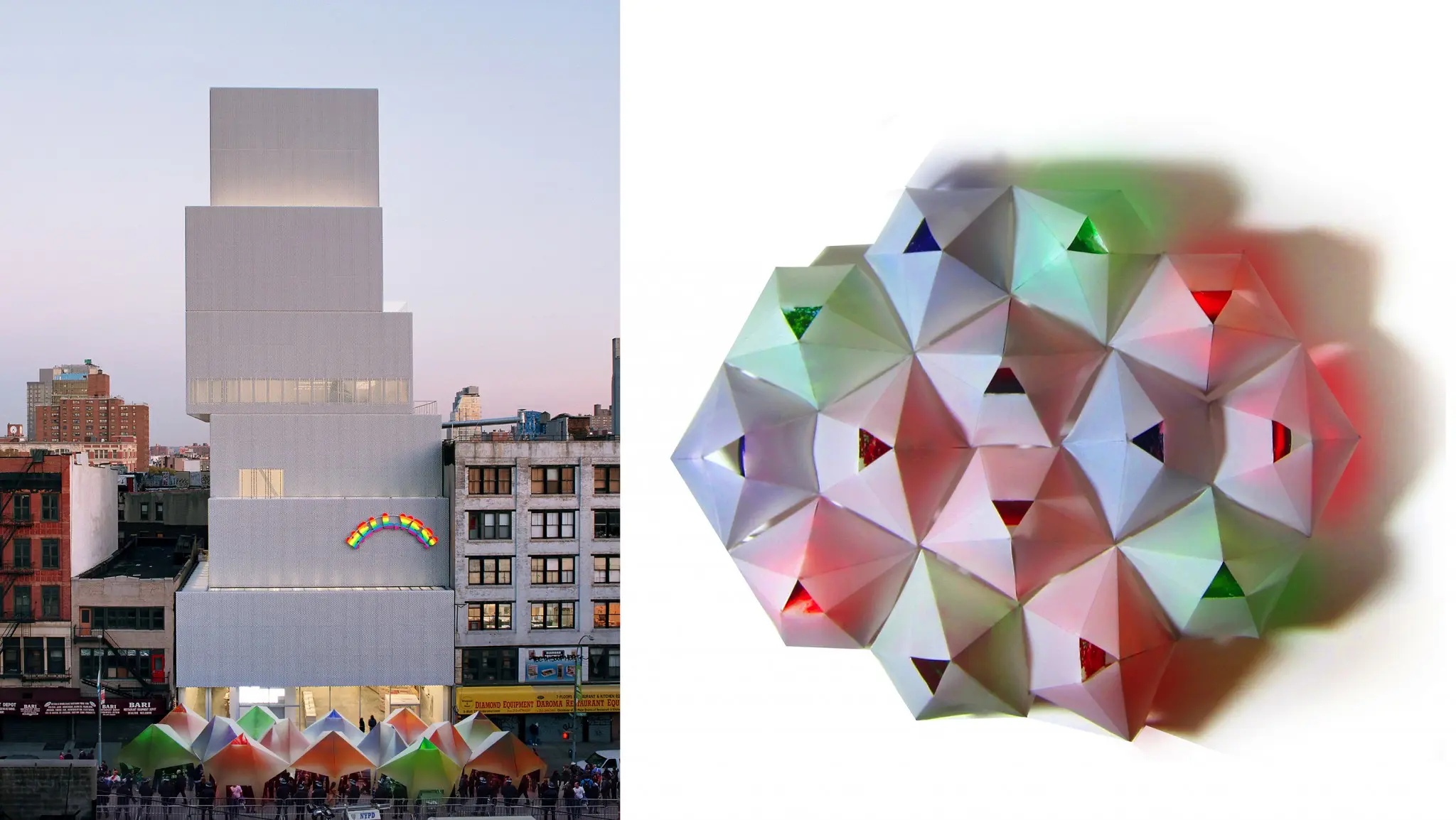

Sixteen feet tall and made of translucent fabric, each peak hints at its interior environment, combining to present a striking skyline for the festival.

NewMuseumTents-Print3-2048x1536

Assembly-Process-resize-2048x1493

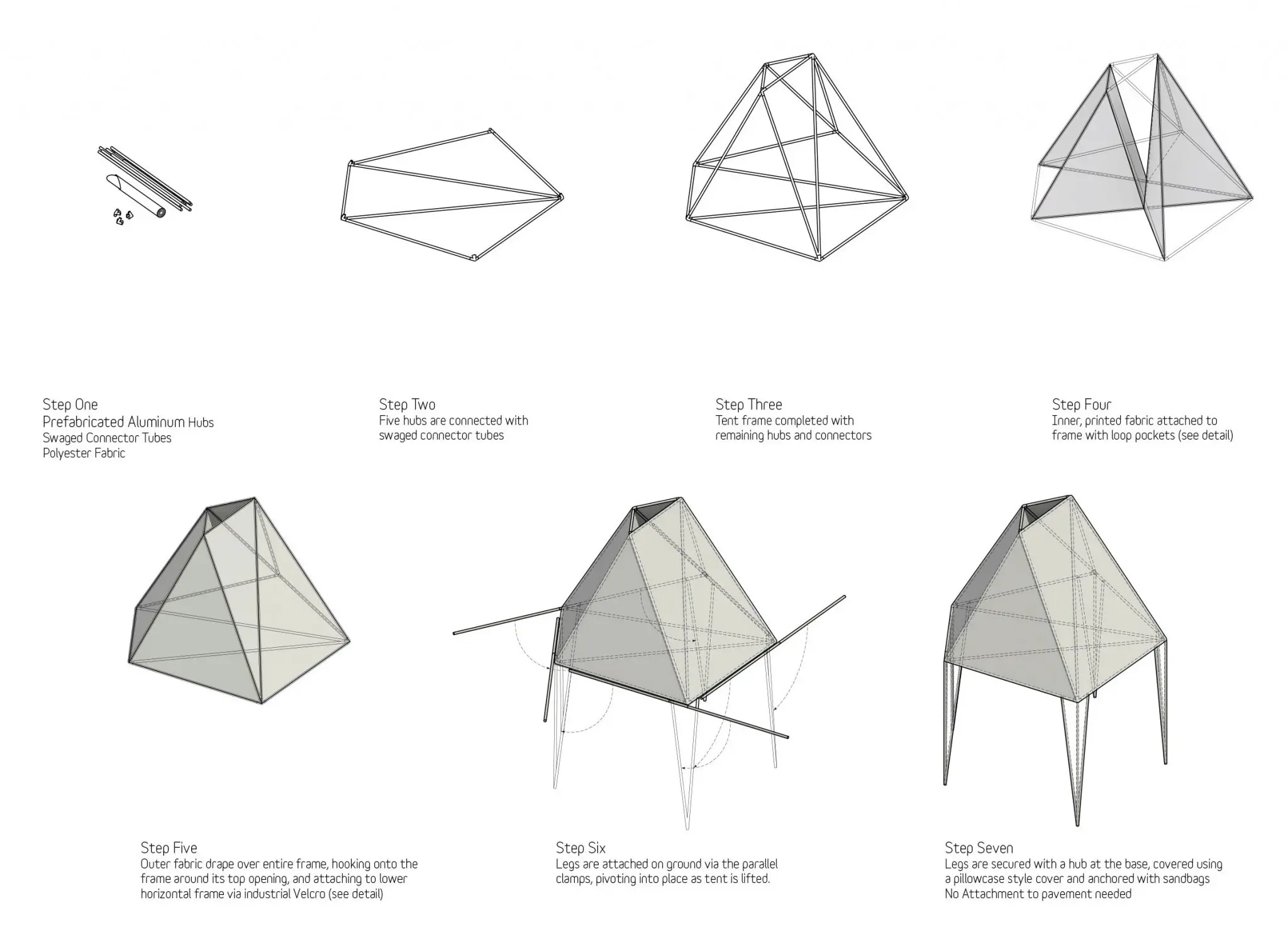

The structural frame would be assembled using custom-made aluminum swaged hubs which telescope into straight tubes. Inner panels of polyester fabric would be printed in-house and sewn to create loop pockets for attaching to the frame. The outer top vinyl cover would drape over entire frame, hooking around its top opening, and attaching to the lower horizontal frame via industrial Velcro. The Legs would then be attached on the ground and would swing into place as the tent is lifted into position.

Ceiling-Patterns-2048x1725

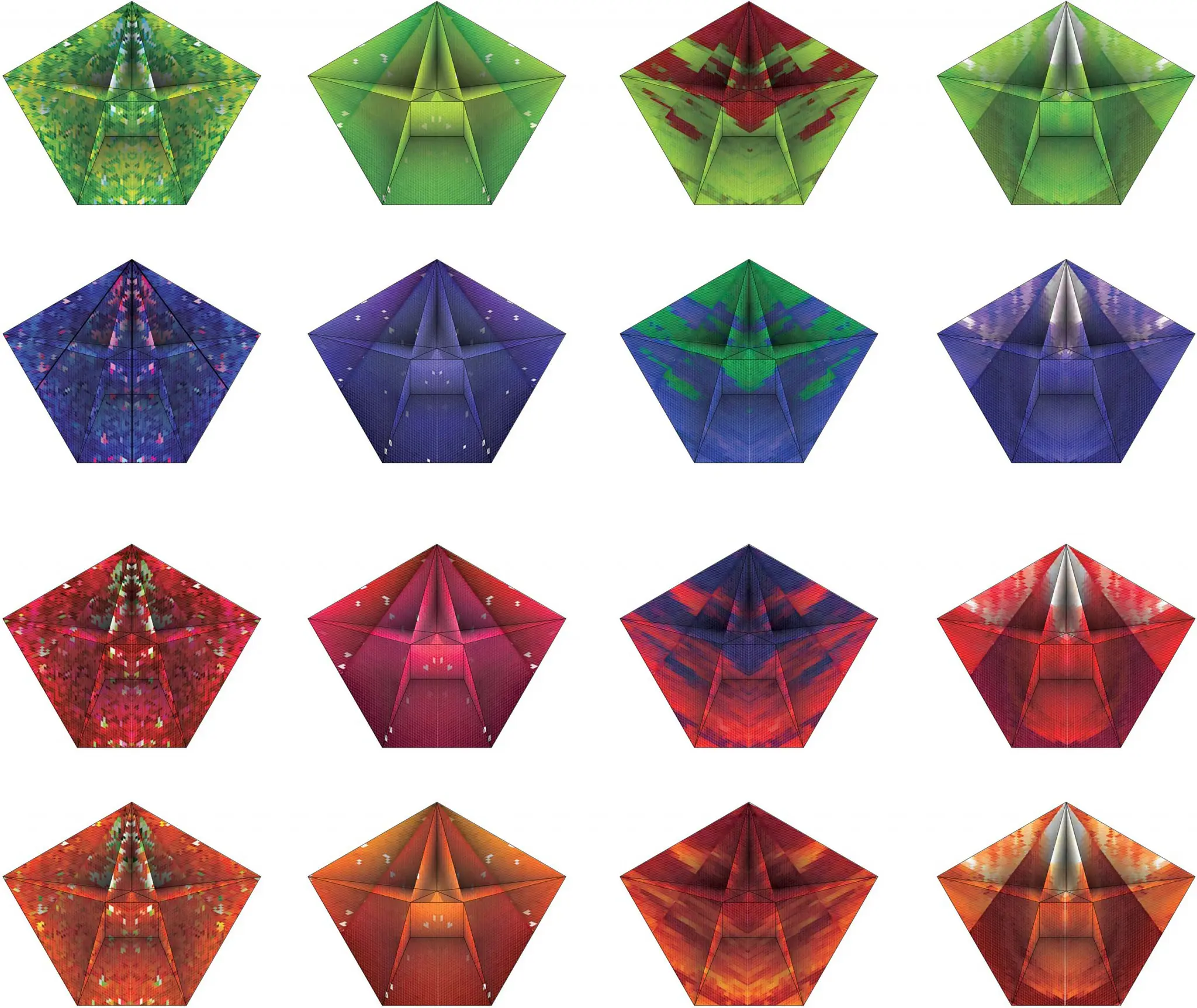

Overhead graphics sample and cross-reference a series of natural environments, creating a novel cosmos intended to spark the imagination, activating and engaging with the activities of the festival.

Project Team: David Freeland, Brennan Buck
